    Middle Size Surface Mounted LED Profile For Ceiling Lighting 23.5*20.5mm

    Ask Lasest Price
    Brand Name : OFLY
    Model Number : YD-2007
    Certification : CE, ROHS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 2000000 Meters\Year
    Delivery Time : 5-7 Days
    • Product Details
    • Company Profile

    Middle Size Surface Mounted LED Profile For Ceiling Lighting 23.5*20.5mm

    Middle Size Surface Mounted LED Profile For Ceiling Lighting 23.5*20.5

    Surface Mounted LED Profile, LED Aluminum Profile


    1. FEATURES AND APPLICATIONS:
    Feature for Aluminum LED Profile: High Quality Aluminum Profiles for commercial and residential LED strip lighting applications. Suitable for recessed installation in window, counter, display case, in-ceiling or in wall accent decor lighting. Made specially to be routed into wood panels, dry-wall, or other substrates. The opal / translucent cover creates a bright "frostedglow-edge" effect ideal for ambient lighting. Easy assembly, light weight, and environment friendly. The aluminum extrusion serves as a heat-sink and helps to dissipate the heat from LED Light Strips prolonging their life. Works with most standard LED flex and hard light strips. Accepts 8mm to 70mm LED strips..


    2. SPECIFICATION:

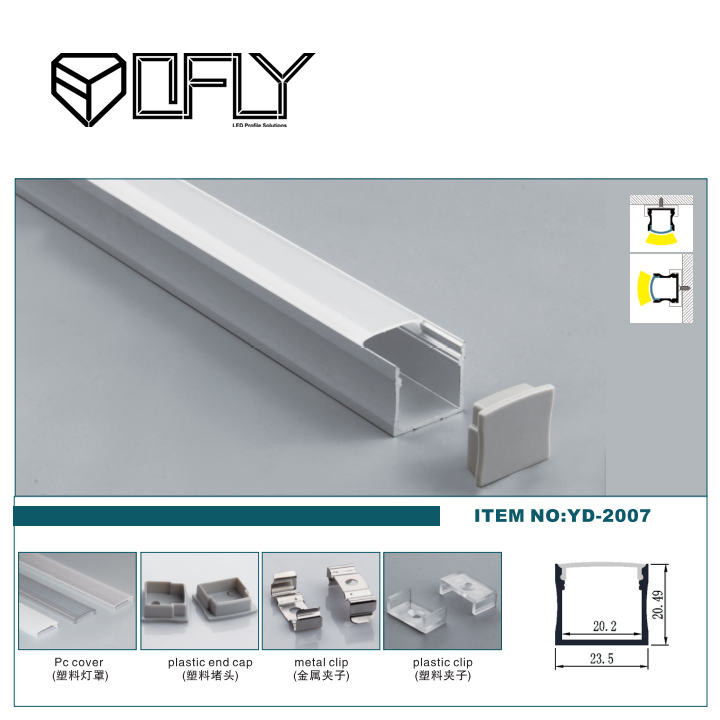

    Item NO.YD-2007
    Size23.5mm*20.5mm
    Length1m, 2m, 3m, 4m
    Customized LengthAvailable
    PCB Width Inside≤12.5mm
    PC CoverMilky/Clear/Opal/Semi-clear
    FinishedAnodized
    Material6063 T5 aluminum alloy
    End Caps2 End caps, one with wire hole, one without
    Brackets2 pieces
    InstallationSurface Mounted
    Lead Time5-7 days
    Package8mm Thick Carton Packaging



    Hot Sales

    FAQ


    Q1. What is the length in stock ?
    A1: Length can be customized.

    Q2. What is the max length of the LED profile ?
    A2. Max in 3meters for air shipment, 5meters for sea shipment

    Q3: Can you help to assemble the led strip and driver ?
    A3: Yes, we provide one-stop assembly service.

    Q4: Can we have the profile in other color ?
    A4: Yes, silver, black and white colors are available.

    Q5: What is the lead time ?
    A5: 10-20 working days according to your order volume.
